Product description: New Antminer Bitmain APW7 PSU

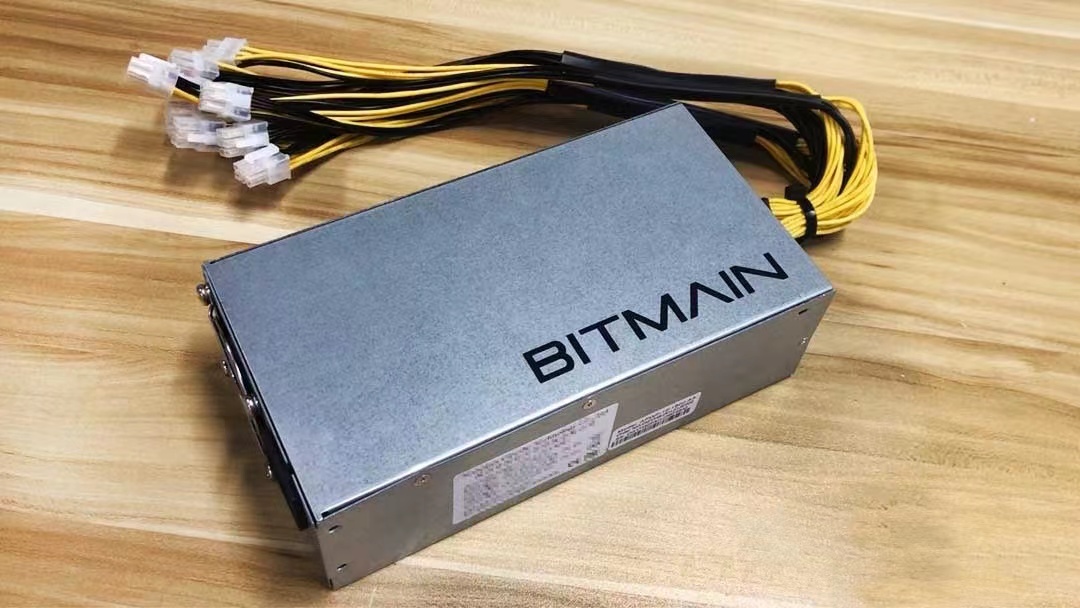

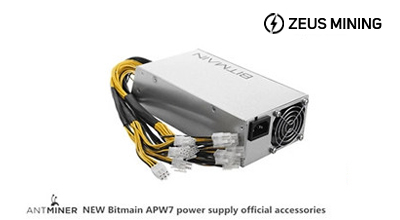

Bitmain Antminer APW7 PSU New
Bitmain APW7 1800W power supply for Antminer S9 S9I Z9 L3 + D3 T9 + E3 Innosilicon A9 D9 BTC LTC DASH.
APW7 is a new type of power supply model specially released by Bitmain for our ant miners. Compared with APW3++, the rated power of APW7 has increased by 200W, and its efficiency is 95%, an increase of 1.5%. APW7 is more power efficient and can reduce mining costs. APW7 has better heat dissipation performance, which means that APW7 can work in a higher temperature environment. New Antminer Bitmain APW7 PSU New Antminer Bitmain APW7 PSU
Technical index
Output:
DC voltage: 12.0V
Rated current (200-240 V input): 150 A
Rated power (200-240 V input): 1800 watts
Rated current (100-140 V input): 67 A
Rated power (100-140 V input): 800 watts
Ripple and noise: <1%
Voltage adjustment rate: <2%
Source regulations: <1%
Load regulation rate: <1%
Setting, rise time: <2 seconds
Power failure protection trip time:> 10 milliseconds
Input value
Voltage range: 100-140 VA/degree Celsius
200-240 VA/degree Celsius
Frequency range: 50-60 Hz
Power factor:> 0.99 (full load)
Leakage current: <1.5 mA 220 V 50 Hz)
Surroundings
Working temperature: -20°C-50°C
Working humidity: relative humidity 20%-90% (no condensation)
Height: <2000 m
Structure
Dimensions: 220 x 108 x 62 mm
Weight: 2.0 kg
Cool down
Fan: forced air cooling
Noise: 43 decibels
